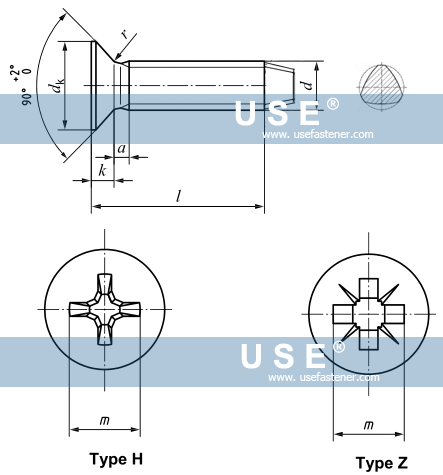

DIN 7500 M - Cross Recessed Countersunk Head Thread Rolling Forming Screws




Thread d
M2
M2.5
M3
(M3.5)
M4
M5
M6
M8
M10
P
0.4
0.45
0.5
0.8
0.7
0.8
1
1.25
1.5
a
max.
0.8
0.9
1
1.2
1.4
1.6
2
2.5
3
dk
nominal = max.
3.8
4.7
5.6
6.5
7.5
9.2
11
14.5
18
min.
3.5
4.4
5.3
6.14
7.14
8.84
10.57
14.07
17.57
k
max.
1.2
1.5
1.65
1.93
2.2
2.5
3
4
5
r
max.
0.5
0.7
0.8
0.95
1
1.3
1.6
2
2.5
