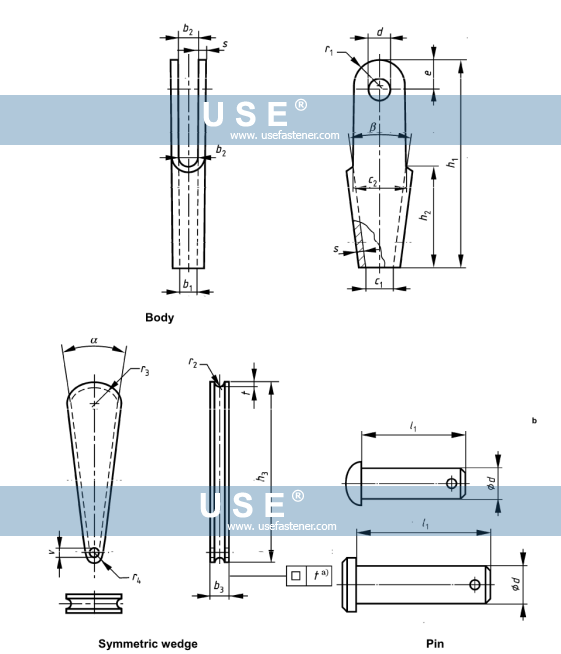

DIN-Fasteners/DIN 15315 - Terminations For Steel Wire Ropes



Nominal  Size  mm
Suitable  for  nominal  rope  diameter
Body
b1
b2
c1
c2
d
e
h1
h2
r1
s
5
4 to 5
9
12
13
26
10
14
110
55
12
3
6.5
5 to 6,5
9
10
16
28
10
15
100
48
14
4
8
6 to 8
12
14
20
37
12
20
150
75
18
4
11
9 to 11
15
17
26
48
16
26
190
95
23
6
14
12 to 14
20
22
32
58
18
32
230
115
28
8
17
15 to 17
23
25
40
70
22
36
260
130
32
10
20
18 to 20
26
27
48
82
25
40
300
150
35
12
Nominal Size mm
Suitable  for  nominal  rope  diameter
Wedge
Pin
b3
r2
r3
r4
h3
t
v
Split pin
d
l1
5
4 to 5
8
2.5
9.5
3
68
1.5
-
3.2 x 32
10
28
6.5
5 to 6.5
8
3.25
9
3.5
58
1.5
-
3.2 x 32
10
28
8
6 to 8
11
4
12.5
4
92
2
2
3.2 x 32
12
33
11
9 to 11
14
5.5
16
5
117
3
-
3.2 x 32
16
45
14
12 to 14
18
7
19
6
141
4
-
3.2 x 32
18
55
17
15 to 17
21
8.5
23
8
162
5
3.2
3.2 x 32
22
66
20
18 to 20
24
10
26
9
186
5
-
3.2 x 32
25
75
