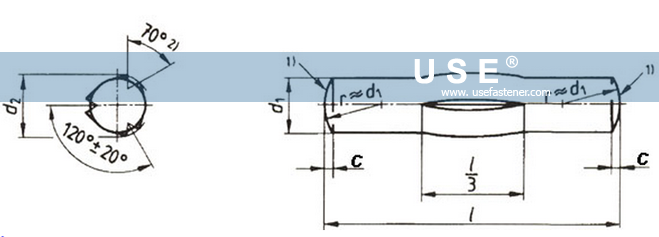

DIN 1475 - Grooved Pins With Third Length Centre-grooved



d1
Nominal
1.5
2
2.5
3
4
5
6
8
10
12
16
20
25
tolerance
h9
h11
a
=
0.2
0.25
0.3
0.4
0.5
0.63
0.8
1
1.2
1.6
2
2.5
3
The smallest cutting force two sections
(kN)
1.6
2.84
4.4
6.4
11.3
17.6
25.4
45.2
70.4
101.8
181
283
444
l

Groove Diameter
Nominal
min.
max.
+0.05 / 0
±0.05
±0.1
8
7.75
8.25
1.6

10
9.75
10.25
1.6

12
11.5
12.5
1.6
2.1
2.6
3.1

14
13.5
14.5
1.63
2.1
2.6
3.1

16
15.5
16.5
1.63
2.1
2.6
3.1

18
17.5
18.5
1.63
2.1
2.65
3.15
4.15
5.15

20
19.5
20.5
1.63
2.1
2.65
3.15
4.15
5.15

22
21.5
22.5

2.15
2.65
3.15
4.2
5.2
6.15

24
23.5
24.5

2.15
2.65
3.15
4.2
5.2
6.15

26
25.5
26.5

2.15
2.65
3.2
4.2
5.2
6.25
8.2

28
27.5
28.5

2.15
2.65
3.2
4.2
5.2
6.25
8.2

30
29.5
30.5

3.2
4.2
5.2
6.25
8.2

32
31.5
32.5

3.2
4.25
5.25
6.25
8.25
10.2

35
34.5
35.5

3.2
4.25
5.25
6.25
8.25
10.2

40
39.5
40.5

3.2
4.25
5.25
6.3
8.3
10.2
12.25

45
44.5
45.5

4.25
5.25
6.3
8.3
10.3
12.25
16.25
20.25
25.25
50
49.5
50.5

4.3
5.25
6.3
8.35
10.3
12.3
16.3
20.25
25.25
55
54.25
55.75

4.3
5.25
6.3
8.35
10.3
12.3
16.3
20.3
25.3
60
59.25
60.75

4.3
5.3
6.3
8.35
10.4
12.3
16.3
20.3
25.3
65
64.25
65.75

6.35
8.35
10.4
12.4
16.4
20.3
25.3
70
69.25
70.75

6.35
8.4
10.4
12.4
16.4
20.4
25.4
75
74.25
75.75

6.35
8.4
10.4
12.4
16.4
20.4
25.4
80
79.25
80.75

6.35
8.4
10.45
12.4
16.4
20.4
25.4
85
84.25
85.75

8.4
10.45
12.5
16.5
20.4
25.4
90
89.25
90.75

8.4
10.45
12.5
16.5
20.4
25.4
95
94.25
95.75

8.4
10.45
12.5
16.5
20.5
25.5
100
99.25
100.75

8.4
10.45
12.5
16.5
20.5
25.5
120
119.25
120.75

10.45
12.5
16.5
20.5
25.5
140
139.25
140.75

10.4
12.5
16.5
20.5
25.5
160
159.25
160.75

10.4
12.5
16.5
20.5
25.5
180
179.25
180.75

12.5
16.5
20.5
25.5
200
199.25
200.75

12.5
16.5
20.5
25.5

Tags: Grooved Pins DIN 1475 Third Length Centre grooved

General Material:Stainless Steel,Nickel Alloy,Silicon Bronze,Aluminium Bronze,Brass,Naval Brass,Coppe,Copper-Nickel,Aluminum Alloy,Titanium,Alloy Steel,Such as C1008,C1018,C1022,C1035,C1045,40cr,SCM435,35crmoA,42crmoA,AISI4140SS304/A2-70,SS316/A4-80,SS310s,SS309,SS321,SS410,SS317,SS904L,17-4 PH/630,Duplex 2205,Duplex 31803,Nitronic 40,Nitronic 50,Nitronic 60,Nickel Alloy,Hastelloy C276,Inconel 600,Inconel 601,Inconel 625,Inconel 718,Inconel X750,Inconel 800H,Inconel 825,Monel 400,Monel 405,Monel K-500,MP35N,Nickel 200,Nickel 201,Waspaloy)C65500,C64200,C61400,C63000,C63200,C46200,H59,H62,H67,C46400,C11000,90/10 C70600,70/30 C71500,6061-T6,2024-T4,Ti-6Al-4V Grade 5,ASTM B348 Grade 2,ASTM B348 Grade 7,651/S63198
General Surface Finish:Blackoxide,Zinc,Dacromet 500/Dacromet 320,Non-electrolytically Deposited Zinc Flake,Hot-dip Galvanization,Phosphating,Passviation
